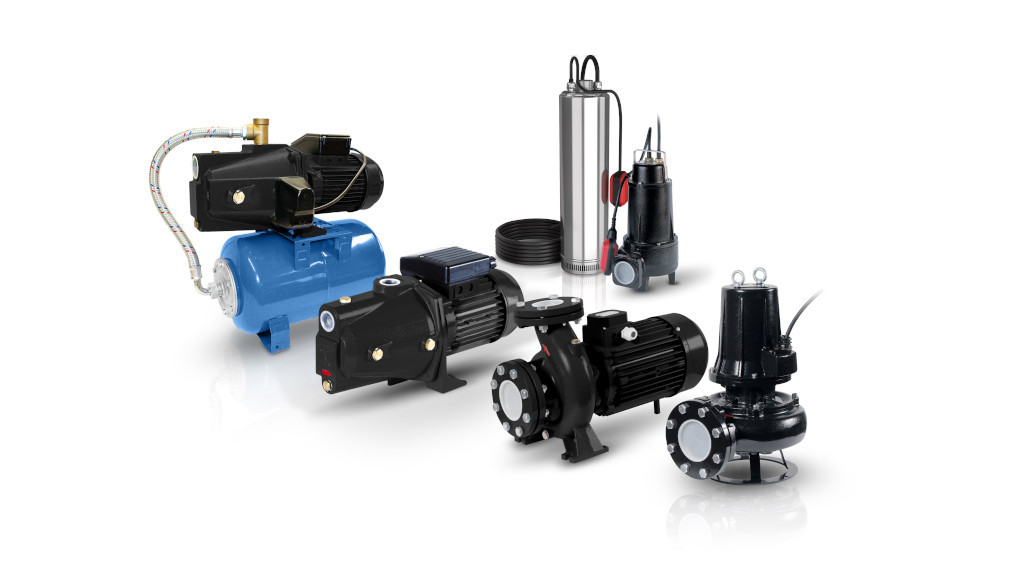

CLOSE-COUPLED PUMPS COMPLETE WITH COUNTER FLANGE

Normalized close coupled electropumps IT-N32-160B

Power (HP): 4 Power (KW): 3 Head min. (Mt.): 35,5 Head max. (Mt.): 44 Capacity min Q. (Lt/Min.): 100 Capacity max Q. (Lt/Min.): 250 DNA: 50 DNM: 32 Pump weight (Kg): 43,5 Voltage: three phase 230/400 V - 50 Hz

Mixed items

IT-N32-160B

IT-N

Power (HP): 4 Power (KW): 3 Head min. (Mt.): 35,5 Head max. (Mt.): 44 Capacity min Q. (Lt/Min.): 100 Capacity max Q. (Lt/Min.): 250 DNA: 50 DNM: 32 Pump weight (Kg): 43,5 Voltage: three phase 230/400 V - 50 Hz

Mixed items

IT-N32-160A

IT-N

Power (HP): 5,5 Power (KW): 4 Head min. (Mt.): 46 Head max. (Mt.): 56,5 Capacity min Q. (Lt/Min.): 100 Capacity max Q. (Lt/Min.): 300 DNA: 50 DNM: 32 Pump weight (Kg): 46,1 Voltage: three phase 230/400 V - 50 Hz

Mixed items

IT-N32-160A

IT-N

Power (HP): 5,5 Power (KW): 4 Head min. (Mt.): 46 Head max. (Mt.): 56,5 Capacity min Q. (Lt/Min.): 100 Capacity max Q. (Lt/Min.): 300 DNA: 50 DNM: 32 Pump weight (Kg): 46,1 Voltage: three phase 230/400 V - 50 Hz

Mixed items

IT-N32-200B

IT-N

Power (HP): 7,5 Power (KW): 5,5 Head min. (Mt.): 29 Head max. (Mt.): 52,5 Capacity min Q. (Lt/Min.): 100 Capacity max Q. (Lt/Min.): 600 DNA: 50 DNM: 32 Pump weight (Kg): 65 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N32-200B

IT-N

Power (HP): 7,5 Power (KW): 5,5 Head min. (Mt.): 29 Head max. (Mt.): 52,5 Capacity min Q. (Lt/Min.): 100 Capacity max Q. (Lt/Min.): 600 DNA: 50 DNM: 32 Pump weight (Kg): 65 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N32-200A

IT-N

Power (HP): 10 Power (KW): 7,5 Head min. (Mt.): 40 Head max. (Mt.): 62 Capacity min Q. (Lt/Min.): 100 Capacity max Q. (Lt/Min.): 600 DNA: 50 DNM: 32 Pump weight (Kg): 72 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N32-200A

IT-N

Power (HP): 10 Power (KW): 7,5 Head min. (Mt.): 40 Head max. (Mt.): 62 Capacity min Q. (Lt/Min.): 100 Capacity max Q. (Lt/Min.): 600 DNA: 50 DNM: 32 Pump weight (Kg): 72 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-160B

IT-N

Power (HP): 4 Power (KW): 3 Head min. (Mt.): 21 Head max. (Mt.): 30 Capacity min Q. (Lt/Min.): 150 Capacity max Q. (Lt/Min.): 600 DNA: 65 DNM: 40 Pump weight (Kg): 45,1 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-160B

IT-N

Power (HP): 4 Power (KW): 3 Head min. (Mt.): 21 Head max. (Mt.): 30 Capacity min Q. (Lt/Min.): 150 Capacity max Q. (Lt/Min.): 600 DNA: 65 DNM: 40 Pump weight (Kg): 45,1 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-200A

IT-N

Power (HP): 10 Power (KW): 7,5 Head min. (Mt.): 40 Head max. (Mt.): 56 Capacity min Q. (Lt/Min.): 250 Capacity max Q. (Lt/Min.): 600 DNA: 65 DNM: 40 Pump weight (Kg): 75,2 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-200A

IT-N

Power (HP): 10 Power (KW): 7,5 Head min. (Mt.): 40 Head max. (Mt.): 56 Capacity min Q. (Lt/Min.): 250 Capacity max Q. (Lt/Min.): 600 DNA: 65 DNM: 40 Pump weight (Kg): 75,2 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-200B

IT-N

Power (HP): 7,5 Power (KW): 5,5 Head min. (Mt.): 30 Head max. (Mt.): 47 Capacity min Q. (Lt/Min.): 250 Capacity max Q. (Lt/Min.): 600 DNA: 65 DNM: 40 Pump weight (Kg): 69,5 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-200B

IT-N

Power (HP): 7,5 Power (KW): 5,5 Head min. (Mt.): 30 Head max. (Mt.): 47 Capacity min Q. (Lt/Min.): 250 Capacity max Q. (Lt/Min.): 600 DNA: 65 DNM: 40 Pump weight (Kg): 69,5 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-160A

IT-N

Power (HP): 5,5 Power (KW): 4 Head min. (Mt.): 25 Head max. (Mt.): 35,5 Capacity min Q. (Lt/Min.): 150 Capacity max Q. (Lt/Min.): 650 DNA: 65 DNM: 40 Pump weight (Kg): 48 Voltage: three phase 230/400 V - 50 Hz

Mixed items

IT-N40-160A

IT-N

Power (HP): 5,5 Power (KW): 4 Head min. (Mt.): 25 Head max. (Mt.): 35,5 Capacity min Q. (Lt/Min.): 150 Capacity max Q. (Lt/Min.): 650 DNA: 65 DNM: 40 Pump weight (Kg): 48 Voltage: three phase 230/400 V - 50 Hz

Mixed items

IT-N40-250B

IT-N

Power (HP): 15 Power (KW): 11 Head min. (Mt.): 52,4 Head max. (Mt.): 76,1 Capacity min Q. (Lt/Min.): 150 Capacity max Q. (Lt/Min.): 700 DNA: 65 DNM: 40 Pump weight (Kg): 94 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-250B

IT-N

Power (HP): 15 Power (KW): 11 Head min. (Mt.): 52,4 Head max. (Mt.): 76,1 Capacity min Q. (Lt/Min.): 150 Capacity max Q. (Lt/Min.): 700 DNA: 65 DNM: 40 Pump weight (Kg): 94 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-250A

IT-N

Power (HP): 20 Power (KW): 15 Head min. (Mt.): 72,4 Head max. (Mt.): 91,9 Capacity min Q. (Lt/Min.): 150 Capacity max Q. (Lt/Min.): 700 DNA: 65 DNM: 40 Pump weight (Kg): 98 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N40-250A

IT-N

Power (HP): 20 Power (KW): 15 Head min. (Mt.): 72,4 Head max. (Mt.): 91,9 Capacity min Q. (Lt/Min.): 150 Capacity max Q. (Lt/Min.): 700 DNA: 65 DNM: 40 Pump weight (Kg): 98 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N50-125A

IT-N

Power (HP): 5,5 Power (KW): 4 Head min. (Mt.): 17 Head max. (Mt.): 23,5 Capacity min Q. (Lt/Min.): 500 Capacity max Q. (Lt/Min.): 1000 DNA: 65 DNM: 50 Pump weight (Kg): 47,8 Voltage: three phase 230/400 V - 50 Hz

Mixed items

IT-N50-125A

IT-N

Power (HP): 5,5 Power (KW): 4 Head min. (Mt.): 17 Head max. (Mt.): 23,5 Capacity min Q. (Lt/Min.): 500 Capacity max Q. (Lt/Min.): 1000 DNA: 65 DNM: 50 Pump weight (Kg): 47,8 Voltage: three phase 230/400 V - 50 Hz

Mixed items

IT-N50-125B

IT-N

Power (HP): 4 Power (KW): 3 Head min. (Mt.): 11 Head max. (Mt.): 18,4 Capacity min Q. (Lt/Min.): 500 Capacity max Q. (Lt/Min.): 1000 DNA: 65 DNM: 50 Pump weight (Kg): 45,3 Voltage: three phase 400/690 V - 50 Hz

Mixed items

IT-N50-125B

IT-N

Power (HP): 4 Power (KW): 3 Head min. (Mt.): 11 Head max. (Mt.): 18,4 Capacity min Q. (Lt/Min.): 500 Capacity max Q. (Lt/Min.): 1000 DNA: 65 DNM: 50 Pump weight (Kg): 45,3 Voltage: three phase 400/690 V - 50 Hz

Mixed items
