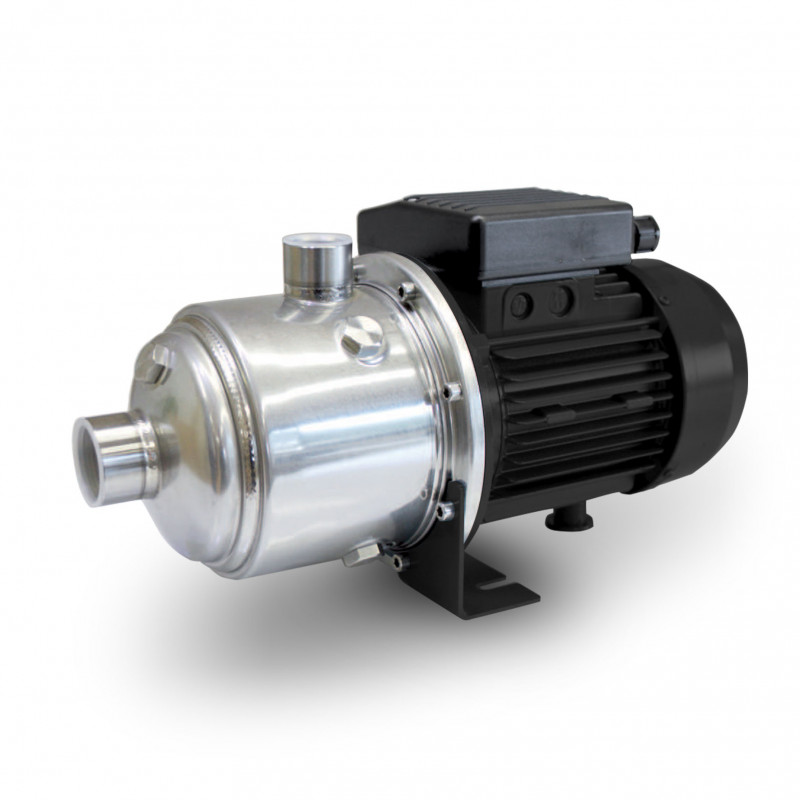

IT-MCOX180/6M
Power (HP): 1,8
Power (KW): 1,3
Head min. (Mt.): 23
Head max. (Mt.): 68
Capacity min Q. (Lt/Min.): 10
Capacity max Q. (Lt/Min.): 135
DNA: 1" 1/4"
DNM: 1"
Pump weight (Kg): 16,3
Voltage: single phase 230/240 V - 50 Hz
-
Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
-
Delivery time 6 weeks
All products are made in Italy and are produced, assembled and checked with serial number
-
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
Accessori da avere assolutamente
Accessori
Vertical pressure tanks EPDM interchangeable membrane. |
Vertical pressure tanks EPDM interchangeable membrane
|
|
Horizontal pressure tanks EPDM interchangeable membrane |
Horizontal pressure tanks EPDM interchangeable membrane
|
|
EPDM membrane for pressure tanks |
EPDM membrane for pressure tanks
|
|
They perform the function of automatic control of pressure energy levels by acting on the power supply of the electric pump. They are previously calibrated at standard closing and opening contact pressures, but can be calibrated at different pressures thanks to their adjustment device. |
SQUARE D FSG 2 pressure switch
|
|
Electronic control switch detecting flow and pressure 12A |
Electronic control switch detecting flow and pressure 12A BRIO 2000 M
|
|
Pressure switches for water installations |
Pressure switch IT-PM5
|
|
|
Pressure gauges
|
|
|
Brass connectors
|
|
|
Flexible hoses
|
SCOPE OF APPLICATION: Multicellular horizontal pumps. These pumps feature excellent hydraulic performance, a very low noise while running and are particularly suited for use in small domestic and industrial systems, in high pressure irrigation systems, for gardening, for rainwater collection and car washing systems. Suited for pumping aggressive media with temperature not less 15°C and not higher than 110°C.
PUMP: Pump body, diffusers, motor shaft, impellers made of AISI 304 stainless steel, mechanical seal made of ceramic-graphite.
MOTOR: Electric, closed-type with external cooling fan, IP55 protection degree. Class F insulation. The standard versions of single-phase motors are fitted with thermostatcontrolled safety microswitches to avoid undesirable damages to the motor. The user must provide protection for three-phase electropumps.
TENSION: M: 230-240 V. 50Hz; T: 230/400 V. 50 Hz. Different voltage and frequency ratings are available on request.
IT-MCOX180/6M
Data sheet
- Power (HP)
- 1,8
- Power (kW)
- 1,3
- Head min (Mt.)
- 23
- Head max (Mt.)
- 68
- Capacity min Q. (Lt/Min.)
- 10
- Capacity max Q. (Lt/Min.)
- 135
- DNA
- 1" 1/4
- DNM
- 1" 1/4
- Pump weigth (Kg)
- 16,3
- Voltage
- Singlephase 230/240 V - 50 Hz
