IT-SP-1833-4XM

Review (0)

Power (HP): 3
Power (KW): 2,2
Head min. (Mt.): 73
Head max. (Mt.): 180
Capacity min Q. (Lt/Min.): 25
Capacity max Q. (Lt/Min.): 70
DNM: 1" 1/4
Pump weight (Kg): 9,7
Voltage: single phase 230/240 V - 50 Hz

Volume discounts

Quantity	Discount	You Save
5	5%	Up to €211.21
10	10%	Up to €844.85
20	15%	Up to €2,534.55
40	25%	Up to €8,448.50
50	35%	Up to €14,784.88
100	45%	Up to €38,018.25

Delivery time

1 - 10 pieces: 7/10 days, transport included;
11 - 50 pieces: 15 days, transport included;
51 - 100 pieces: 25 days, including transport;
over 100 pieces: estimated 30 days.

All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.

REQUEST FOR QUOTATION

Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
Delivery time 6 weeks All products are made in Italy and are produced, assembled and checked with serial number
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)

Accessori da avere assolutamente

Accessori

	Automatic coupling group with flanged delivery	Automatic coupling group with flanged delivery
	Threaded 2” GAS delivery rapid coupling foot	Threaded 2” GAS delivery rapid coupling foot
	Automatic coupling group reduction	Automatic coupling group reduction
	Non return ball valve	Non return ball valve
	Mechanical seals	Mechanical seals

BASIC FEATURES:

Non polluting, corrosion resistant, AISI 304 stainless steel construction inside and outside.
The smooth safety hook will prevent the rope from abading.
The built-injam free stainless steel check valve can prevent backflow of water in the pipe from affecting the pump performance when the motor is not operating.
Precision stainless steel intermediate chamber can help maintain optimum performance even when water pressure is greatest.
The high performance, high efficiency stainless steel impeller is one of the special features of this product. It is incomparably superior to ordinary plastic or brass impellers in terms of abrasion resistance and service life.

OPERATING CONDITIONS: Max ambient temperature (liquid): 30°C. Sand content max: 50 gr/m3.

PUMPED LIQUIDS: Clean, free from solid or abrasive substances.

APPLICATIONS: Water supply from deep wells, sprinkler systems for agricultural irrigation, civil and industrial applications, fire fighting systems, drainage.

Reference IT-SP-1833-4XM

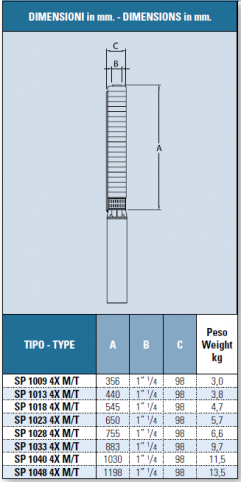

Data sheet
