IT-NPM7B

Review (0)

Power (HP): 3
Power (KW): 2,2
Head min. (Mt.): 40
Head max. (Mt.): 64
Capacity min Q. (Lt/Min.): 10
Capacity max Q. (Lt/Min.): 120
DNA: 1" 1/2
DNM: 1"
Pump weight (Kg): 32,1 (brass impeller) / 31 (noryl impeller)
Voltage: single phase 230/240 V - 50 Hz

Impeller material :

Color :

Volume discounts

Quantity	Discount	You Save
5	5%	Up to €134.66
10	10%	Up to €538.63
20	15%	Up to €1,615.89
40	25%	Up to €5,386.30
50	35%	Up to €9,426.03
100	45%	Up to €24,238.35

Delivery time

1 - 10 pieces: 7/10 days, transport included;
11 - 50 pieces: 15 days, transport included;
51 - 100 pieces: 25 days, including transport;
over 100 pieces: estimated 30 days.

All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.

REQUEST FOR QUOTATION

Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
Delivery time 6 weeks All products are made in Italy and are produced, assembled and checked with serial number
Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)

SCOPE OF APPLICATION: Double impeller pumps with axial intake and upward-facing radial delivery. This model features very low noise, excellent hydraulic performance with medium-high discharge heads and high flow rates. These electropumps are particularly suited for industrial, agricultural and domestic applications. It is recommended that these pumps are used to carry only chemically pure liquids and free of foreign matters, with temperature not higher than 45 °C. The pump must absolutely not be allowed to run dry in order to avoid irreversible deformations to the components in plastic.

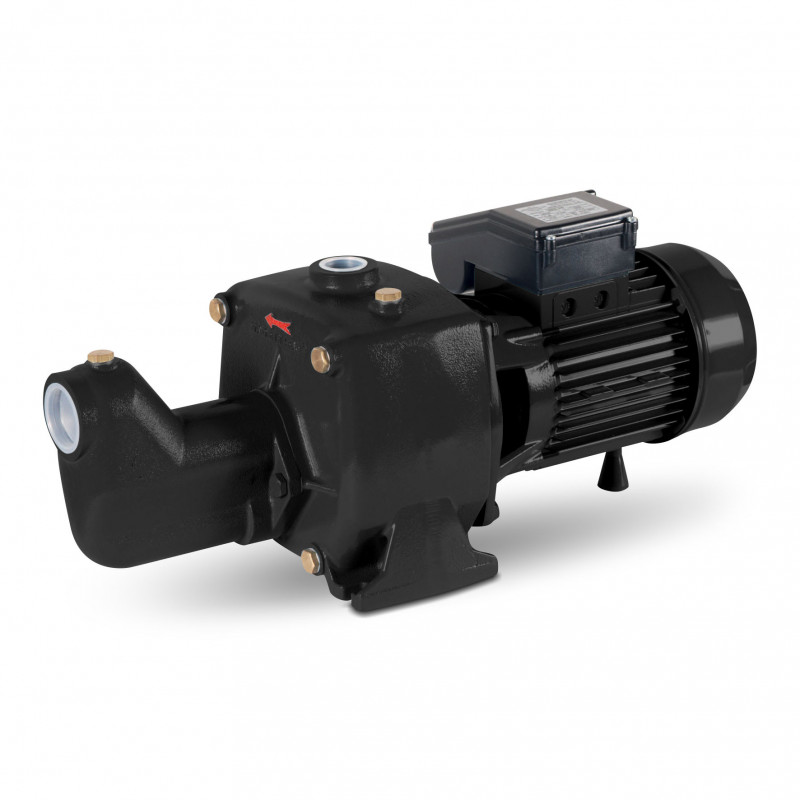

PUMP: Horizontal axis pump with bronze impellers (Noryl impellers are available on request), pump body, ejector body and motor bracket made of G20 cast iron, AISI 304 stainless steel shaft, diffuser set and ejector in Noryl and mechanical seal made of ceramic/graphite.

MOTOR: Electric, closed-type with external cooling fan, IP 44 safety class. F insulation. The standard versions of single-phase motors is fitted with termostat-controlled safety microswitches to avoid undesirable damages to the motor. The user must provide protection for three-phase electropumps.

TENSION: NPM 5-6-7 B: 230-240 V. 50 Hz; NP 5-6-7 B: 230/400 V. 50 Hz. Different voltage and frequency ratings are available on request.

Reference IT-NPM7B

Data sheet
