• Electric motor model SF56-2B configuration B3

    SF56-2B

    Review (0)

    Model: SF56-2B

    THREE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1
    for range of rated voltage: 230-400 V – 50Hz; 400-690 V – 50Hz
    IEC 60034-1
    degree of protection: IP54
    insulation class F
    duty S1
    temp. -15ºC to +40ºC
    CE mark

    Rated output (kW): 0,12
    Rated speed (rpm): 2790
    Rated current IN at 400 V (A): 0,4
    Efficiency η [%] IE1: 61
    Power factor cos φ : 0,70
    Torque TN (Nm): 0,41
    Starting current/rated current IL/IN: 4,6
    Starting torque/rated torque TL/TN: 2,7
    TMax/TN: 2,7
    Motor weight IE1 (kg): 3

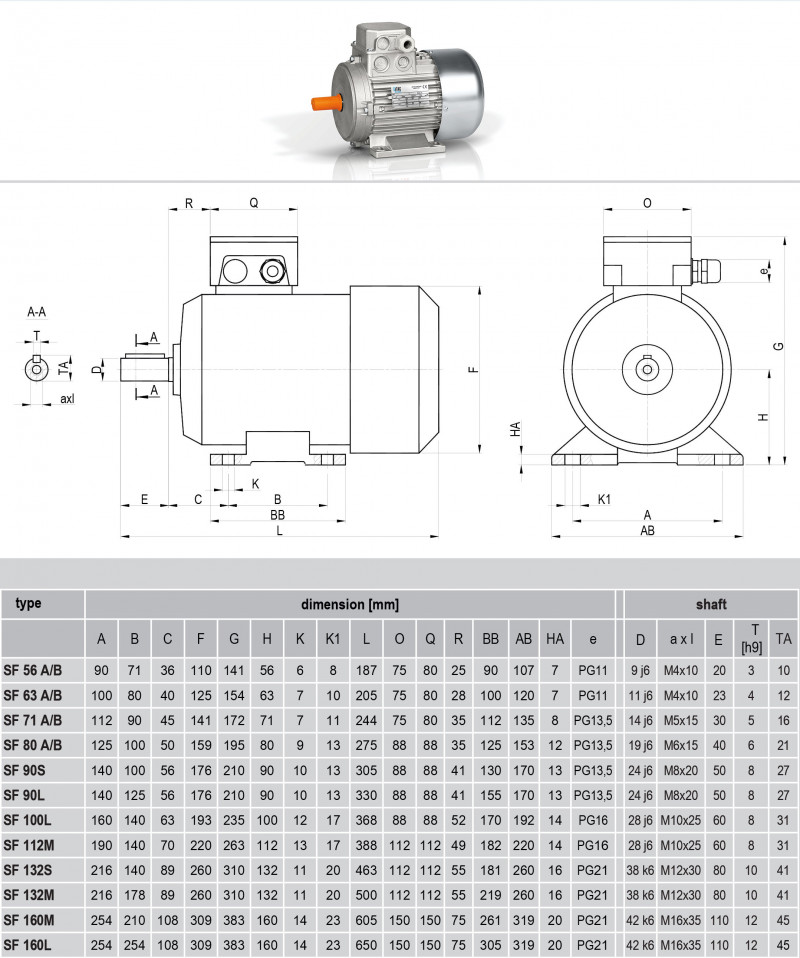

    Download general technical datasheet for the construction characteristics of the motors

    Thermic :
    Mounting Arrangements :

    Volume discounts

    QuantityDiscountYou Save
    55%Up to €29.07
    1010%Up to €116.27
    2015%Up to €348.80
    4025%Up to €1,162.66
    5035%Up to €2,034.66
    10045%Up to €5,231.97
    Delivery time

    1 - 10 pieces: 7/10 days, transport included;
    11 - 50 pieces: 15 days, transport included;
    51 - 100 pieces: 25 days, including transport;
    over 100 pieces: estimated 30 days.

    All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.

    REQUEST FOR QUOTATION

    Last time this product was added to a cart: 2021-08-06

    • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
    • Delivery time 6 weeks All products are made in Italy and are produced, assembled and checked with serial number
    • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
    SF56-2B-T-B3

    Data sheet

    Rated output (kW)
    0,12
    Rated speed (rpm)
    2790
    Rated current IN at 400 V (A)
    0,4
    Efficiency η [%] IE1
    61
    Power factor cos φ
    0,70
    Torque TN (Nm)
    0,41
    Starting current/rated current IL/IN
    4,6
    Starting torque/rated torque TL/TN
    2,7
    TMax/TN
    2,7
    Motor weight IE1 (kg)
    3
