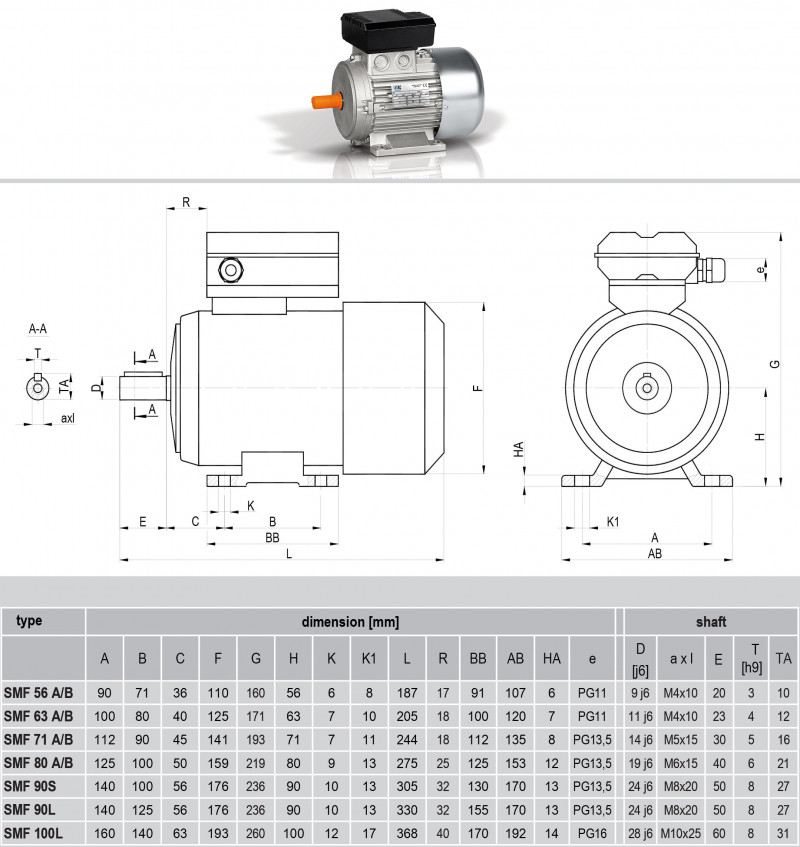

• Electric motor model SMF63-2A configuration B3

    SMF63-2A

    Review (0)

    Model: SMF63-2A

    SINGLE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1, IEC 60034-1
    for range of rated voltage: 230 V – 50Hz
    degree of protection: IP54
    insulation class F
    duty S1
    temp. -15ºC to +40ºC
    CE mark

    Rated output (kW): 0,18
    Rated speed (rpm): 2800
    Rated current IN at 230V (A): 1,4
    Efficiency η [%] IE2: 64
    Power factor cos φ : 0,90
    Torque TN (Nm): 0,62
    Starting current/rated current IL/IN: 3,5
    Starting torque/rated torque TL/TN: 0,47
    Run capacitor μF a 450 V: 10
    Motor weight (kg): 4

    Download general technical datasheet for the construction characteristics of the motors

    Thermic :
    Mounting Arrangements :

    Volume discounts

    QuantityDiscountYou Save
    55%Up to €34.04
    1010%Up to €136.15
    2015%Up to €408.46
    4025%Up to €1,361.52
    5035%Up to €2,382.66
    10045%Up to €6,126.84
    Delivery time

    1 - 10 pieces: 7/10 days, transport included;
    11 - 50 pieces: 15 days, transport included;
    51 - 100 pieces: 25 days, including transport;
    over 100 pieces: estimated 30 days.

    All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.

    REQUEST FOR QUOTATION

    • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
    • Delivery time 6 weeks All products are made in Italy and are produced, assembled and checked with serial number
    • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
    SMF63-2A-T-B3

    Data sheet

    Rated output (kW)
    0,18
    Rated speed (rpm)
    2800
    Rated current IN at 230 V (A)
    1,4
    Efficiency η [%] IE1
    64
    Power factor cos φ
    0,90
    Torque TN (Nm)
    0,62
    Starting current/rated current IL/IN
    3,5
    Starting torque/rated torque TL/TN
    0,47
    Run capacitor μF a 450 V
    10
    Motor weight IE1 (kg)
    4
