Model: SF56-2B
THREE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1
for range of rated voltage: 230-400 V – 50Hz; 400-690 V – 50Hz
IEC 60034-1
degree of protection: IP54
insulation class F
duty S1
temp. -15ºC to +40ºC
CE mark
Rated output (kW): 0,09
Rated speed (rpm): 1380
Rated current IN at 400 V (A): 0,37
Efficiency η [%] IE1: 58
Power factor cos φ : 0,61
Torque TN (Nm): 0,6
Starting current/rated current IL/IN: 2,9
Starting torque/rated torque TL/TN: 2,2
TMax/TN: 2,3
Motor weight IE1 (kg): 3,5

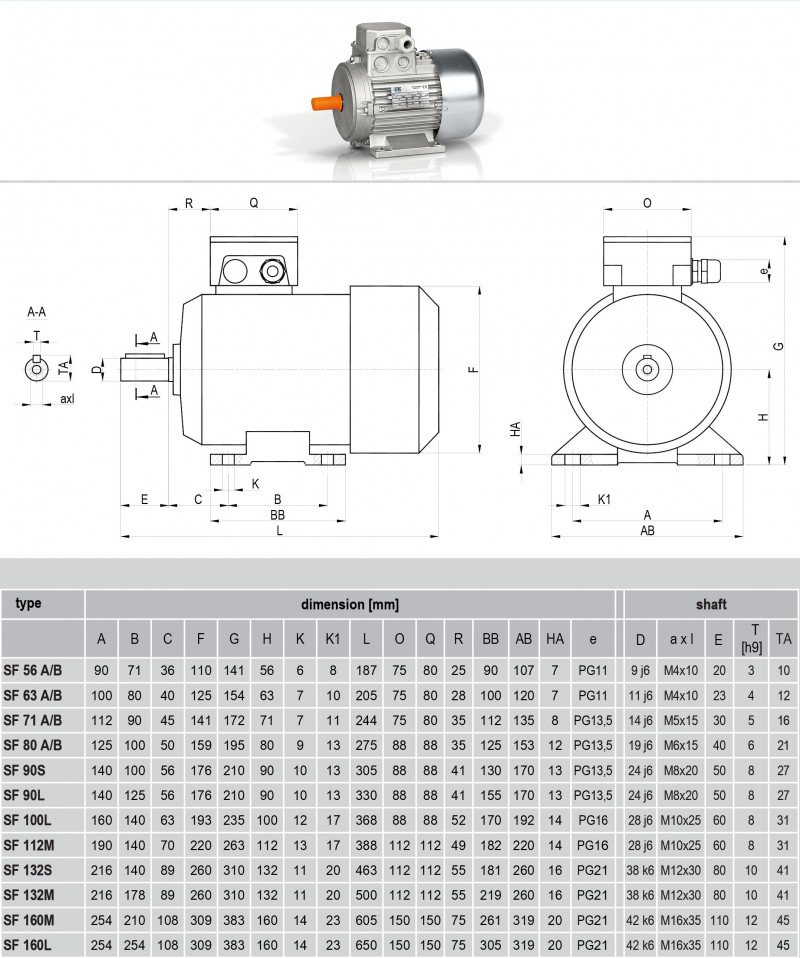

Download general technical datasheet for the construction characteristics of the motors
Data sheet
