SF100-L4A

Review (0)

Model: SF100-L4A

THREE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1
for range of rated voltage: 230-400 V – 50Hz; 400-690 V – 50Hz
IEC 60034-1
degree of protection: IP54
insulation class F
duty S1
temp. -15ºC to +40ºC
CE mark

Rated output (kW): 2,2
Rated speed (rpm): 1420
Rated current IN at 400 V (A): 5,1
Efficiency η [%] IE1: 79,7
Power factor cos φ : 0,79
Torque TN (Nm): 14,8
Starting current/rated current IL/IN: 4,6
Starting torque/rated torque TL/TN: 2,3
TMax/TN: 2,4
Motor weight IE1 (kg): 19

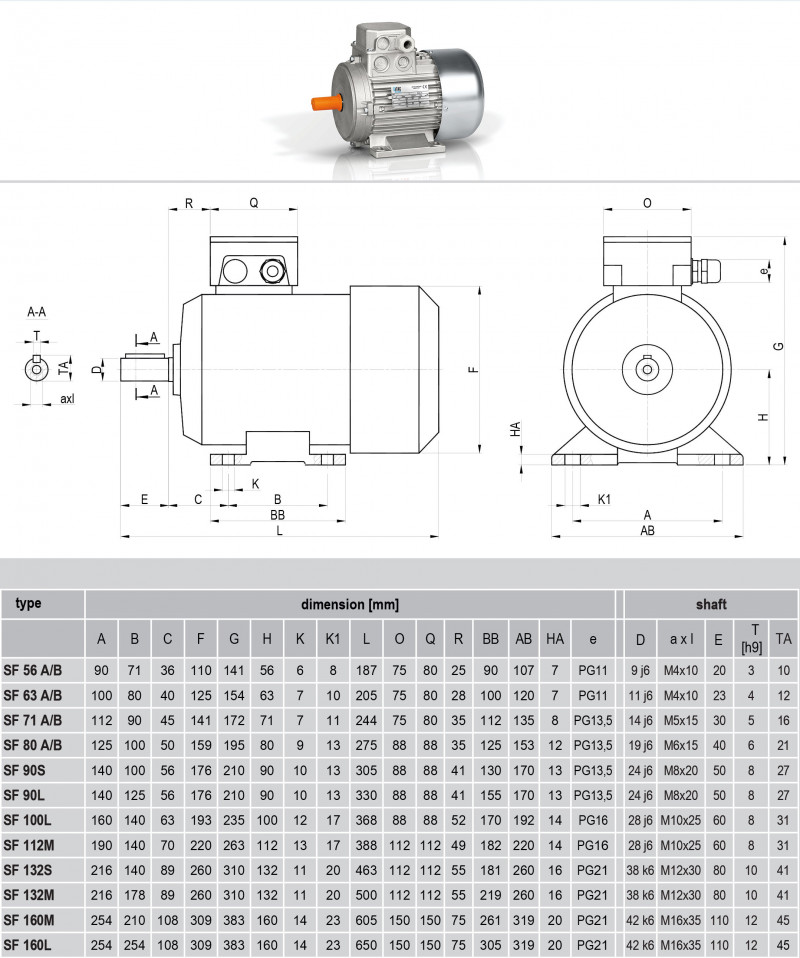

Download general technical datasheet for the construction characteristics of the motors

Thermic :

Mounting Arrangements :

Volume discounts

Quantity	Discount	You Save
5	5%	Up to €84.03
10	10%	Up to €336.11
20	15%	Up to €1,008.33
40	25%	Up to €3,361.10
50	35%	Up to €5,881.93
100	45%	Up to €15,124.95

Delivery time

1 - 10 pieces: 7/10 days, transport included;
11 - 50 pieces: 15 days, transport included;
51 - 100 pieces: 25 days, including transport;
over 100 pieces: estimated 30 days.

All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.
