SF80-4B

Review (0)

Model: SF80-4B

THREE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1
for range of rated voltage: 230-400 V – 50Hz; 400-690 V – 50Hz
IEC 60034-1
degree of protection: IP54
insulation class F
duty S1
temp. -15ºC to +40ºC
CE mark

Rated output (kW): 0,75
Rated speed (rpm): 1420
Rated current IN at 400 V (A): 2,03
Efficiency η [%] IE1: 72,2
Power factor cos φ : 0,74
Torque TN (Nm): 5,1
Starting current/rated current IL/IN: 4,2
Starting torque/rated torque TL/TN: 2,1
TMax/TN: 2,4
Motor weight IE1 (kg): 9

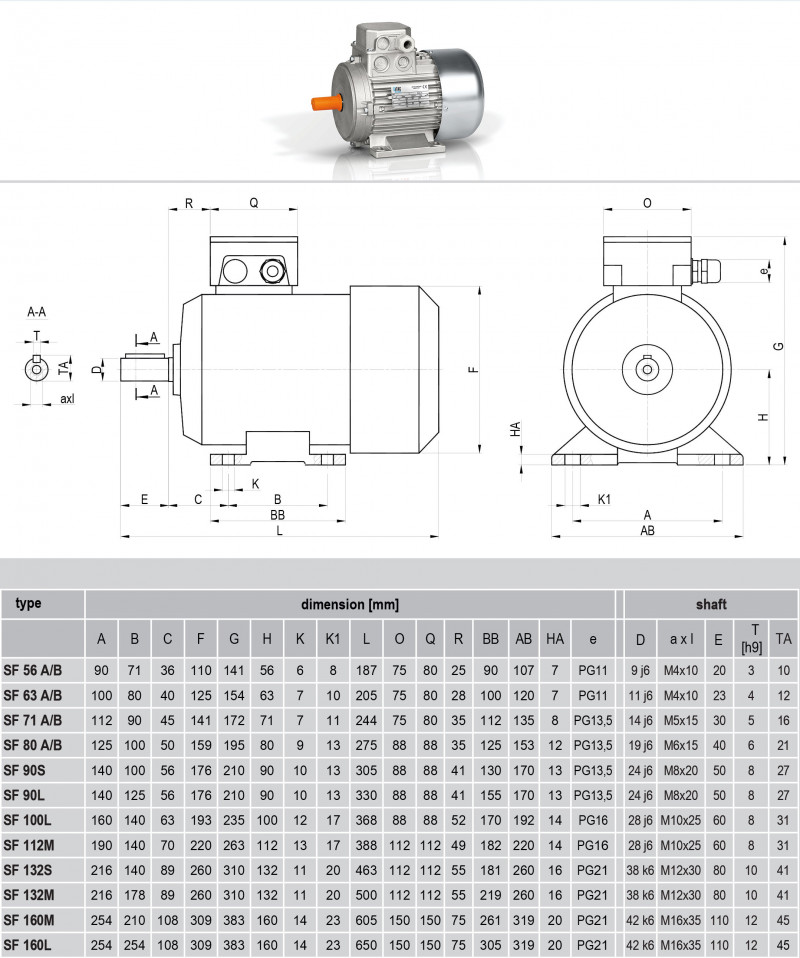

Download general technical datasheet for the construction characteristics of the motors

Thermic :

Mounting Arrangements :

Volume discounts

Quantity	Discount	You Save
5	5%	Up to €47.15
10	10%	Up to €188.61
20	15%	Up to €565.84
40	25%	Up to €1,886.12
50	35%	Up to €3,300.71
100	45%	Up to €8,487.54

Delivery time

1 - 10 pieces: 7/10 days, transport included;
11 - 50 pieces: 15 days, transport included;
51 - 100 pieces: 25 days, including transport;
over 100 pieces: estimated 30 days.

All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.
