SMF100L-6

Review (0)

Model: SMF100L-6

SINGLE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1, IEC 60034-1
for range of rated voltage: 230 V – 50Hz
degree of protection: IP54
insulation class F
duty S1
temp. -15ºC to +40ºC
CE mark

Rated output (kW): 1,5
Rated speed (rpm): 940
Rated current IN at 230V (A): 9,3
Efficiency η [%] IE2: 74
Power factor cos φ : 0,96
Torque TN (Nm): 15,24
Starting current/rated current IL/IN: 2,7
Starting torque/rated torque TL/TN: 0,73
Run capacitor μF a 450 V: 50
Motor weight (kg): 20

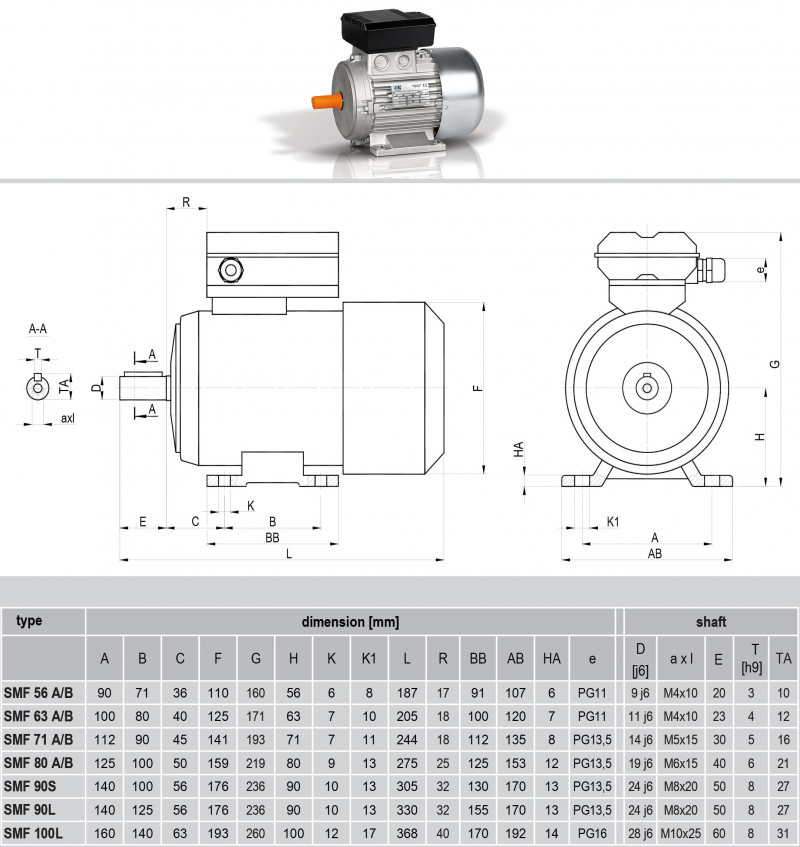

Download general technical datasheet for the construction characteristics of the motors

Thermic :

Mounting Arrangements :

Volume discounts

Quantity	Discount	You Save
5	5%	Up to €139.29
10	10%	Up to €557.17
20	15%	Up to €1,671.52
40	25%	Up to €5,571.74
50	35%	Up to €9,750.55
100	45%	Up to €25,072.83

Delivery time

1 - 10 pieces: 7/10 days, transport included;
11 - 50 pieces: 15 days, transport included;
51 - 100 pieces: 25 days, including transport;
over 100 pieces: estimated 30 days.

All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.
