SHF100L-6

Review (0)

Model: SHF100L-6

THREE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1, PN-EN 60034-30, IEC 60034-1, IEC 60034-30
for range of rated voltage: 230-400 V – 50Hz; 400-690 V – 50Hz
IEC 60034-1
degree of protection: IP54
insulation class F
duty S1
temp. -15ºC to +40ºC
CE mark

Rated output (kW): 1,5
Rated speed (rpm): 950
Rated current IN at 400 V (A): 3,92
Efficiency η [%] IE2: 80
Power factor cos φ : 0,71
Torque TN (Nm): 15
Starting current/rated current IL/IN: 4
Starting torque/rated torque TL/TN: 1,9
TMax/TN: 2,3
Motor weight (kg): 20,5

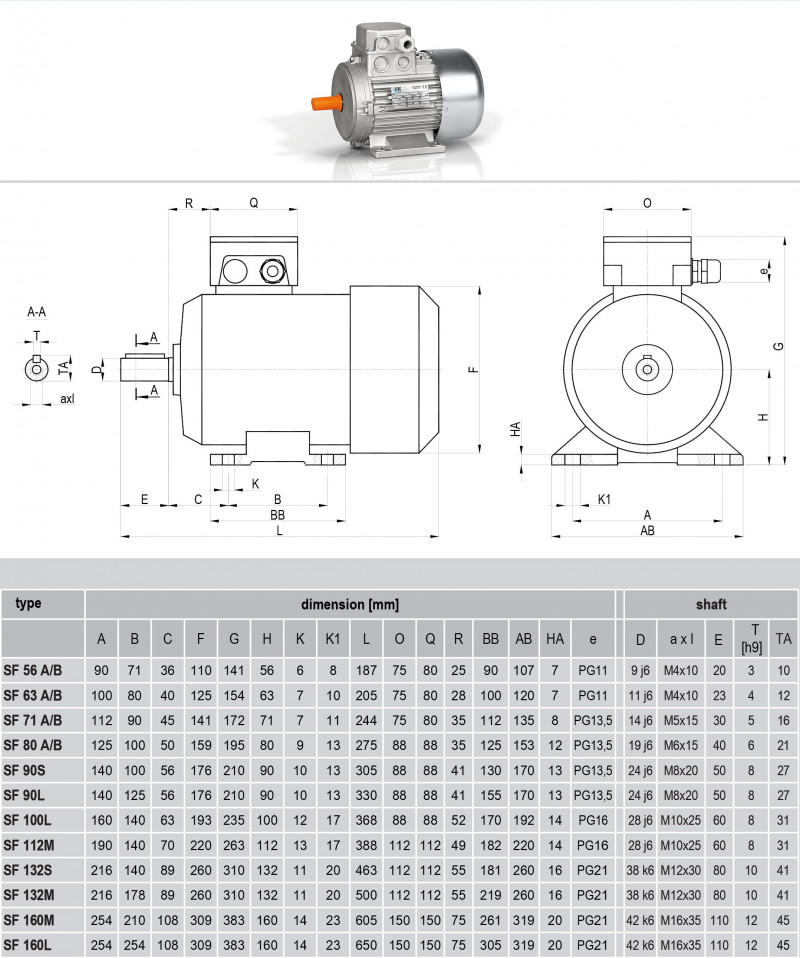

Download general technical datasheet for the construction characteristics of the motors

Thermic :

Mounting Arrangements :

Volume discounts

Quantity	Discount	You Save
5	5%	Up to €130.36
10	10%	Up to €521.43
20	15%	Up to €1,564.28
40	25%	Up to €5,214.28
50	35%	Up to €9,124.99
100	45%	Up to €23,464.26

Delivery time

1 - 10 pieces: 7/10 days, transport included;
11 - 50 pieces: 15 days, transport included;
51 - 100 pieces: 25 days, including transport;
over 100 pieces: estimated 30 days.

All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.
