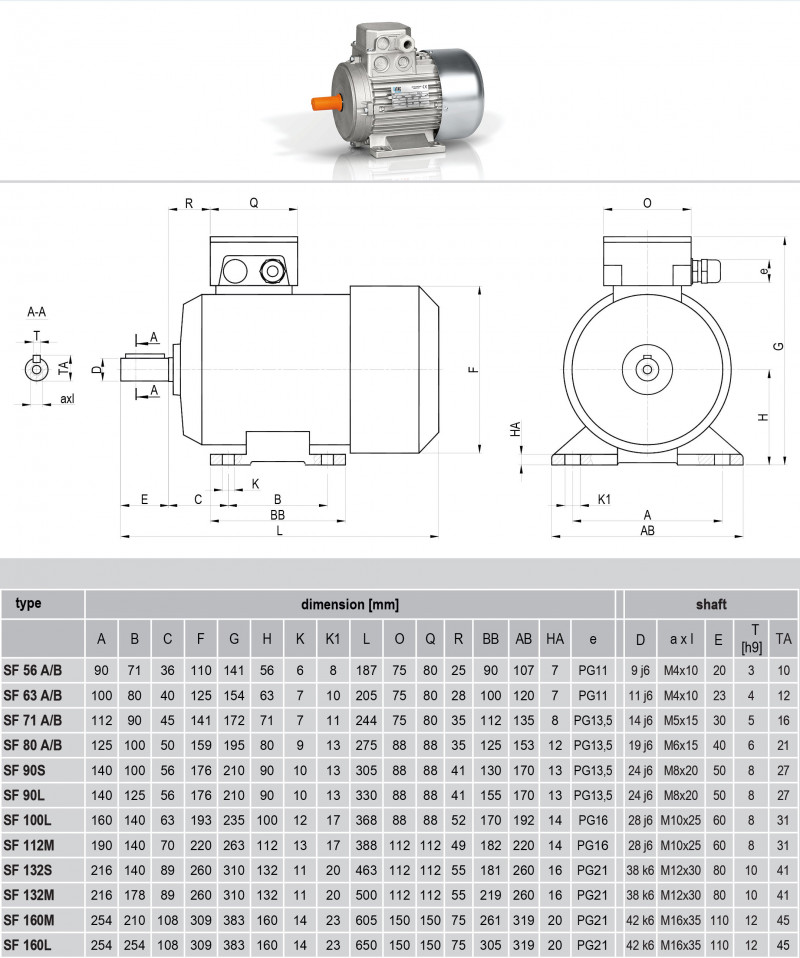

• Electric motor model SF132-S6 configuration B3

    SF132-S6

    Review (0)

    Model: SF132-S6

    THREE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1
    for range of rated voltage: 230-400 V – 50Hz; 400-690 V – 50Hz
    IEC 60034-1
    degree of protection: IP54
    insulation class F
    duty S1
    temp. -15ºC to +40ºC
    CE mark

    Rated output (kW): 3
    Rated speed (rpm): 950
    Rated current IN at 400 V (A): 6,94
    Efficiency η [%] IE1: 80
    Power factor cos φ : 0,76
    Torque TN (Nm): 30,2
    Starting current/rated current IL/IN: 4,7
    Starting torque/rated torque TL/TN: 2,2
    TMax/TN: 2,5
    Motor weight IE1 (kg): 41

    Download general technical datasheet for the construction characteristics of the motors

    Thermic :
    Mounting Arrangements :

    Volume discounts

    QuantityDiscountYou Save
    55%Up to €195.66
    1010%Up to €782.63
    2015%Up to €2,347.89
    4025%Up to €7,826.30
    5035%Up to €13,696.03
    10045%Up to €35,218.35
    Delivery time

    1 - 10 pieces: 7/10 days, transport included;
    11 - 50 pieces: 15 days, transport included;
    51 - 100 pieces: 25 days, including transport;
    over 100 pieces: estimated 30 days.

    All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.

    REQUEST FOR QUOTATION

    • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
    • Delivery time 6 weeks All products are made in Italy and are produced, assembled and checked with serial number
    • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
    SF132S-6-T-B3

    Data sheet

    Rated output (kW)
    3
    Rated speed (rpm)
    950
    Rated current IN at 400 V (A)
    6,94
    Efficiency η [%] IE1
    80
    Power factor cos φ
    0,78
    Torque TN (Nm)
    30,2
    Starting current/rated current IL/IN
    4,7
    Starting torque/rated torque TL/TN
    2,2
    TMax/TN
    2,5
    Motor weight IE1 (kg)
    41

    Specific References
