• Electric motor model SHF132M-6A configuration B3

    SHF132M-6A

    Review (0)

    Model: SHF132M-6A

    THREE – PHASE MOTORS DESIGNED IN STANDARD PN-EN 60034-1, PN-EN 60034-30, IEC 60034-1, IEC 60034-30
    for range of rated voltage: 230-400 V – 50Hz; 400-690 V – 50Hz
    IEC 60034-1
    degree of protection: IP54
    insulation class F
    duty S1
    temp. -15ºC to +40ºC
    CE mark

    Rated output (kW): 4
    Rated speed (rpm): 950
    Rated current IN at 400 V (A): 8,67
    Efficiency η [%] IE2: 85,4
    Power factor cos φ : 0,78
    Torque TN (Nm): 40,21
    Starting current/rated current IL/IN: 4,9
    Starting torque/rated torque TL/TN: 2,1
    TMax/TN: 2,4
    Motor weight (kg): 47

    Download general technical datasheet for the construction characteristics of the motors

    Thermic :

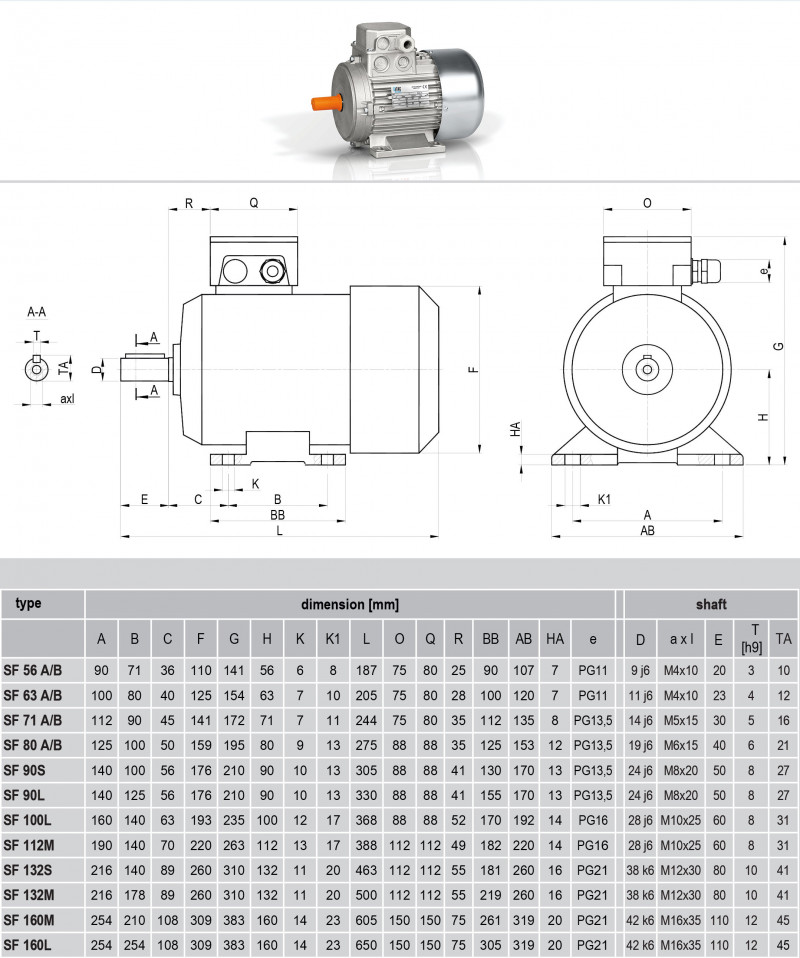

    Mounting Arrangements :

    Volume discounts

    QuantityDiscountYou Save
    55%Up to €285.18
    1010%Up to €1,140.70
    2015%Up to €3,422.10
    4025%Up to €11,407.00
    5035%Up to €19,962.25
    10045%Up to €51,331.50
    Delivery time

    1 - 10 pieces: 7/10 days, transport included;
    11 - 50 pieces: 15 days, transport included;
    51 - 100 pieces: 25 days, including transport;
    over 100 pieces: estimated 30 days.

    All products are made in Italy and are produced, assembled and checked with the identification serial number placed on the accompanying booklet and reserved for the customer-order number.

    REQUEST FOR QUOTATION

    • Politiche per la sicurezza (modificale con il modulo Rassicurazioni cliente)
    • Delivery time 6 weeks All products are made in Italy and are produced, assembled and checked with serial number
    • Politiche per i resi merce (modificale con il Modulo rassicurazioni cliente)
    SHF132M-6A-T-B3

    Data sheet

    Rated output (kW)
    4
    Rated speed (rpm)
    950
    Rated current IN at 400 V (A)
    8,67
    Efficiency η [%] IE1
    85,4
    Power factor cos φ
    0,78
    Torque TN (Nm)
    40,21
    Starting current/rated current IL/IN
    4,9
    Starting torque/rated torque TL/TN
    2,1
    TMax/TN
    2,4
    Motor weight IE1 (kg)
    47
